Staccato HD P4 assembly

[rx_6jr]

Having a hard time assembling back the hd p4 after a field strip. it stays a quarter inch back before sitting fully flush. What am I doing wrong? Anyone down to meet up in OC that can show me or FaceTime me? lol



[RustVendor]

you probably didn't put the slide stop through the barrel link. you have to line up the link into the slide stop hole to put the slide stop into first, then put the other end through the notch in the slide.



[Mil-Dot]

Having a hard time assembling back the hd p4 after a field strip. it stays a quarter inch back before sitting fully flush. What am I doing wrong? Anyone down to meet up in OC that can show me or FaceTime me? lol

I live in OC. And can help you send me a DM



[rx_6jr]

I live in OC. And can help you send me a DM

sent you a text brotha!



[Hindsight]

Staccato and others have some detailed disassembly and reassembly videos.

Common culprits are:

- barrel link improperly installed
- recoil assembly not properly seated and kept seated while putting the slide back on
- firing pin block lever sticking up



[peahi2]

Many vids. First 1911?



[Hit Factor]

If you own a Staccato HD, the Dawson Precision K.I.S.S. tools will change your life.

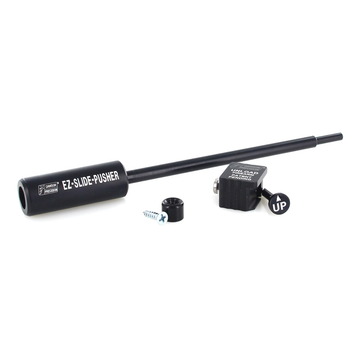

Disassembly/Assembly Tool Kit for Staccato HD, K.I.S.S., by Dawson Precision®

Dawson Precision K.I.S.S. (Keep It Simple, Shooter!) Disassembly and Assembly Kit for the Staccato HD pistol. These tools help keep maintenance a breeze.

dawsonprecision.com



[rx_6jr]

Many vids. First 1911?

yup lol



[10RoundLimit]

The Dawson kit is helpful especially the plunger pin tool to remove the slide lock pin. It took me a few frustrating times to learn how to take it apart or put it back together. Be patient and go slow. Eventually it becomes secondary.



[Hindsight]

The Dawson kit is helpful especially the plunger pin tool to remove the slide lock pin. It took me a few frustrating times to learn how to take it apart or put it back together. Be patient and go slow. Eventually it becomes secondary.

You mean the slide stop?



[No_glonks]

You mean the slide stop?

Probably. Dawson slide stop removal tool is freaking awesome



[Hindsight]

Probably. Dawson slide stop removal tool is freaking awesome

Yah. That tool is handy. The rest of the kit I don’t miss much, but that might be from years of working on 1911s/2011s.



[No_glonks]

Yah. That tool is handy. The rest of the kit I don’t miss much, but that might be from years of working on 1911s/2011s.

HD was my first 2011/1911 and I too don’t use the rest of the kit.
Btw, remember my issue with P4.5? Staccato came trough, i probably should make a shout out post about it



[ZeroFoxGiven]

Don’t really see point of kit, removing the slide release is simple tooless. Just push it out with finger through the ejection port.

Your finger just pushes the the tab on slide release that interacts with magazine follower. If you gently push on it it will pop out. If it doesn’t, just gently jiggle the Ambi right side slide release causing them to align and then it pops out.



[rx_6jr]

Don’t really see point of kit, removing the slide release is simple tooless. Just push it out with finger through the ejection port.

are the first few times really hard because it's brand new? I tried pushing it out with my finger and it wasn't budging. Had to use a small tool, the gun is brand new



[ZeroFoxGiven]

are the first few times really hard because it's brand new? I tried pushing it out with my finger and it wasn't budging. Had to use a small tool, the gun is brand new

Not sure if new or technique not perfected as same thing happened to me and it became really easy after a few tries.

Might be both.



[No_glonks]

Just watch first 25 seconds
